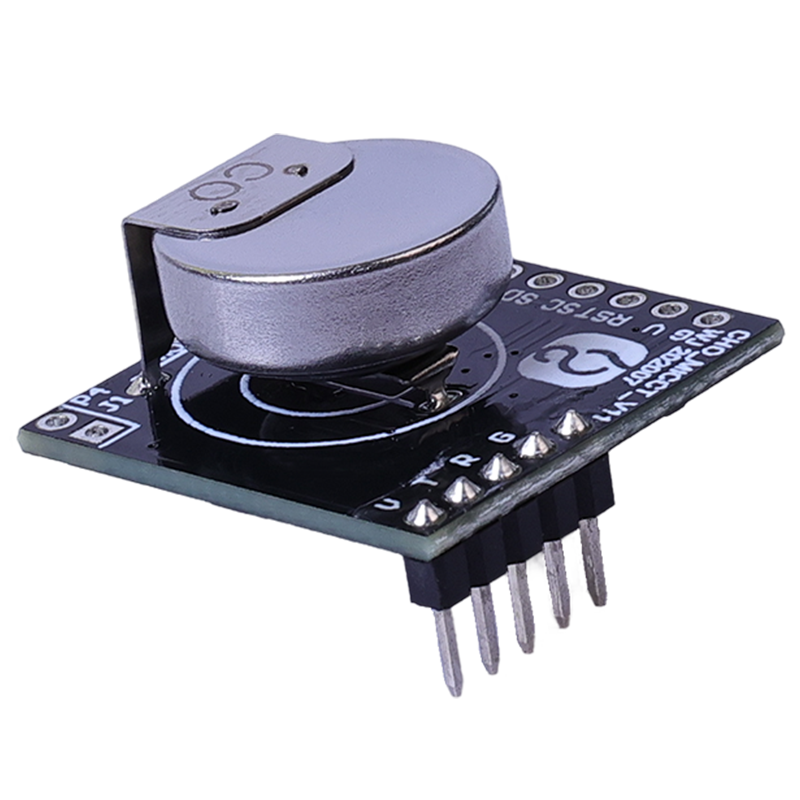

PS-CO-1000M

Long life CO Module

PS-CO-1000M CO module, works on the proven fuel cell technology, combines fuel cell technology with precise electronic technique, converting the CO content into PPM directly. Once CO arrives at working electrode (anode) it is oxidized instantaneously to generate an electrical signal which is proportional to the CO concentration. The electrical signal is then acquired and processed by microprocessor into a PPM value and is output by standard digital signal. PS-CO-1000M is pre-calibrated in the factory and can be integrated into your system directly.

Specification Download Leave a message

Features

0 Power Consumption

High Measurement Aaccuracy

Long Service Life

Selective Detection

Fast Response Speed

Anti Poisoning

Wide Temperature Range

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Detectable Gas	CO
Detection Range	0-1000ppm
Maximum Overload	5000ppm
Input Voltage	4.5-7V
Response Time（T90）	<30S
Check the Accuracy	±3ppm OR（25±3℃）
Detection Limit	5ppm
Repeatability	3%
Linearity	Linear
Temperature Range	-40℃～70℃
Range of Work Pressure	Standard Atmospheric Pressure ±10％
Humidity Range	10％－90％RH（Non condensing）
Service Life	10 Years (normal use)
Warranty Period	12 Months
Weight	4g
Organic Silicon Poisoning	No

Typical Applications

Smart Home

Portable Instrument

Wearable Devices

Air Cleaner

Fresh Air System
