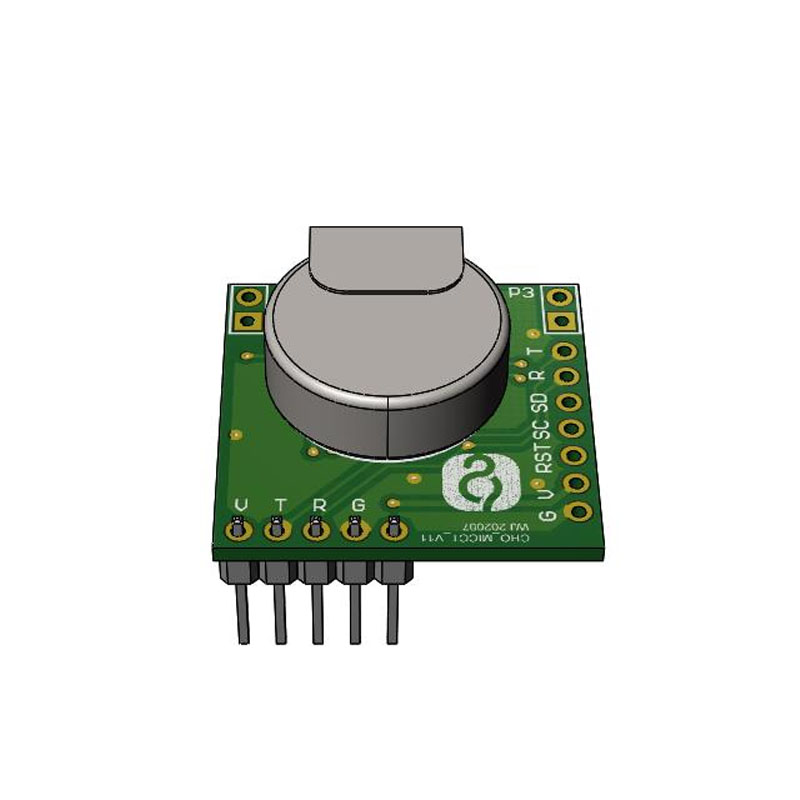

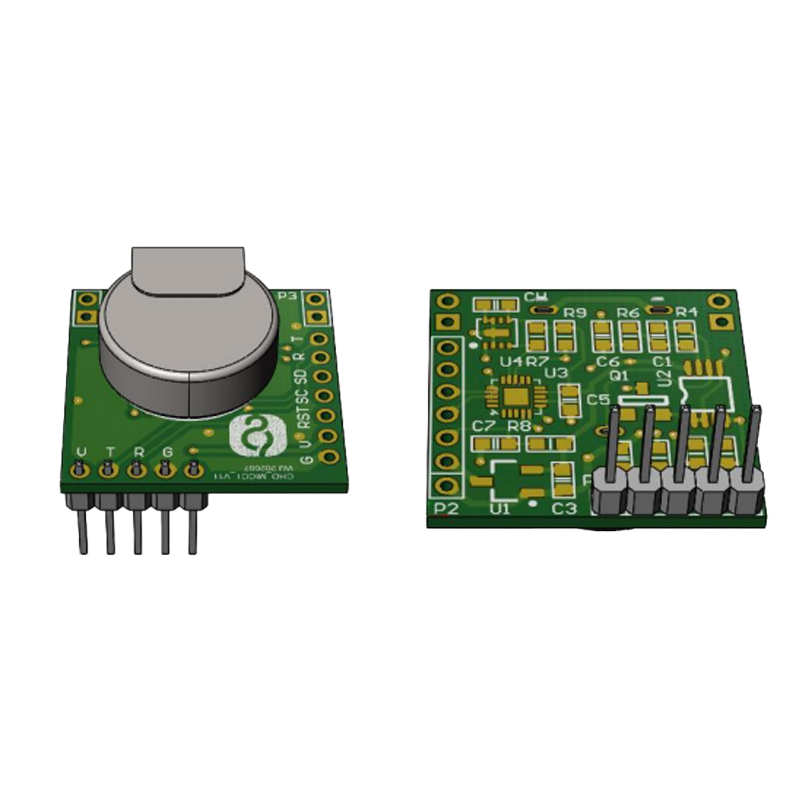

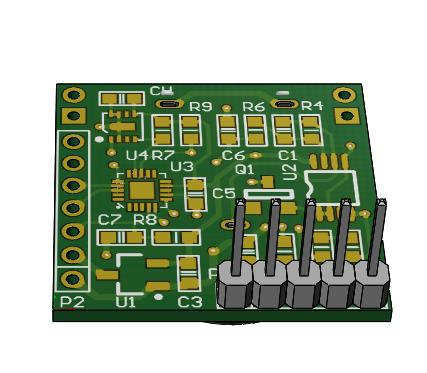

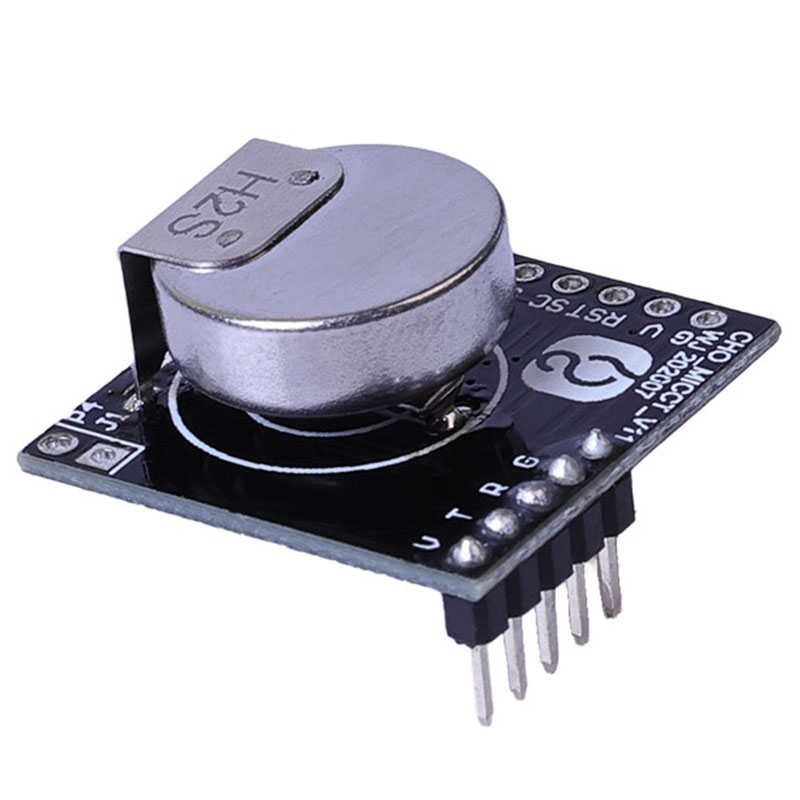

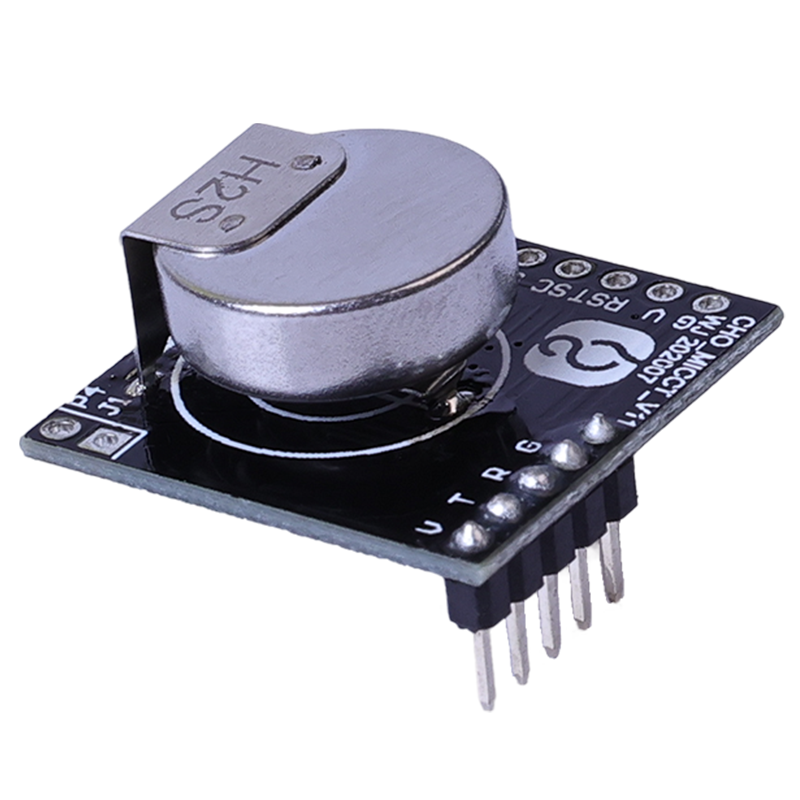

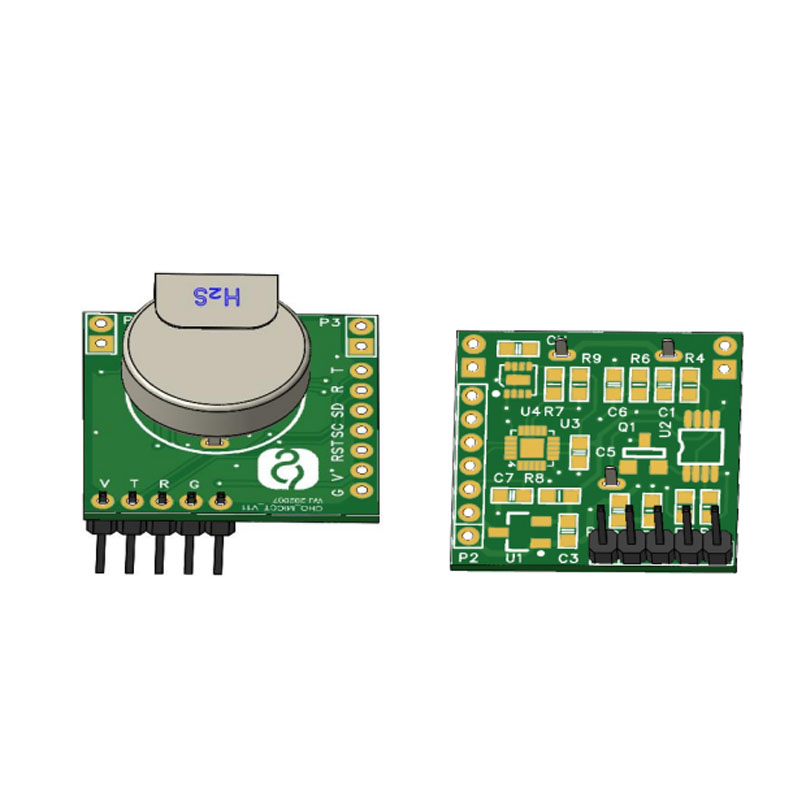

PS0-H2S-5000

Hydrogen Sulphide Module

PS0-H2S-5000 hydrogen sulphide module combines selective H2S sensor with high accuracy and advanced electronic control technology, converting H2S concentration into PPM directly. PS0-H2S-5000 selective H2S module with high accuracy can be applied in smart toilets / smart home / aquatic farm and other cases where detection of H2S at very low level is required. PS0-H2S-5000 selective H2S module is pre-calibrated in the factory and can be integrated into your system directly.

Specification Download Leave a message

Features

Selective Detection of Hydrogen Sulfide

High Measurement Accuracy

Fast Response Speed

Long Service Life

Stable and Reliable

Low Power Consumption

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Detectable Gas	H2S
Detection Range	0-5000ppm
Maximum Overload	6000ppm
Input Voltage	4.5-6V
Response Time（T90）	<90S
Resolution	20ppm
Check The Accuracy	±3ppm OR ±10% Whichever is greater（25±3℃）
Temperature Range	-40℃～70℃
Humidity Range	10％－90％RH（Non condensing）
Service Life	2 Years (normal use)
Warranty Period	12 Months
Weight	6g

Typical Applications

Industrial Safety

Chemical Plant

Smelter

Detector/Monitoring Instrument
