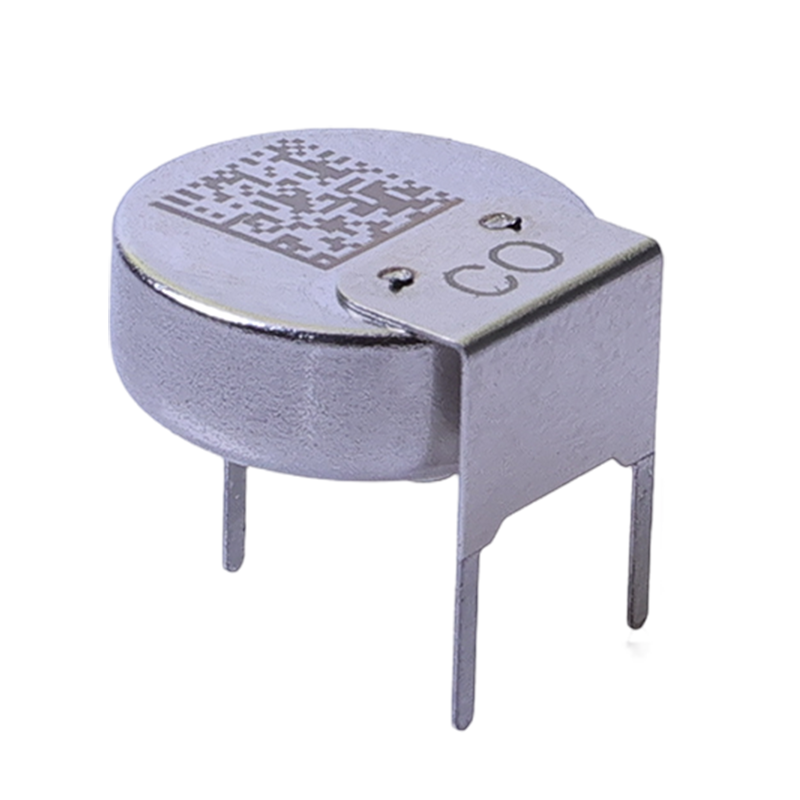

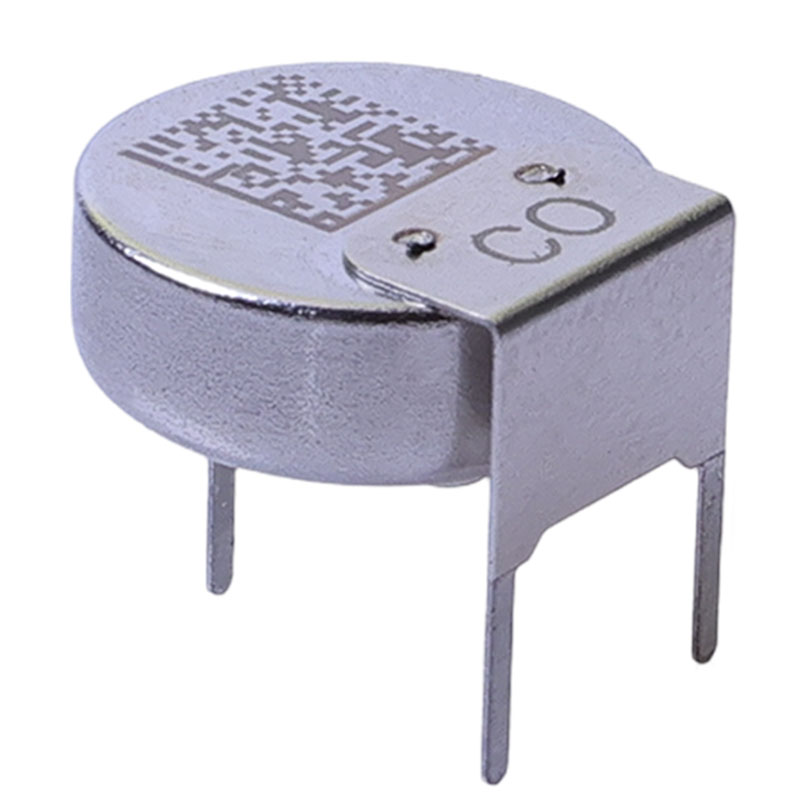

FC-CO-100
Long Service Life Carbon Monoxide Sensors
FC-CO-100 CO sensor from ProSense works on the proven fuel cell technology and responds directly to the volume concentration of CO. FC-CO-100 realizes the detection of CO by the reaction occurred on the working electrode of the micro fuel cell, during which the current generated is proportional to the concentration of CO. FC-CO-100 is perfect for application powered by battery because fuel cell realizes gas detection without power consumption.
Features
0 Power Consumption
Fast Response
High Precision
Selective Detection
Anti Poisoning
Wide Temperature Range
Ten Year Service Life
Excellent Repeatability and Stability
Technical Indicators
Principle Micro Fuel Cell
Range 0-100ppm
Maximum Overload 200ppm
Sensitivity 5±1.5(nA/ppm)
Response Time <60 秒
Check The Accuracy(25±3℃) ±3%FS
Repeatability 3%
Linearity Linear
Temperature Range -40℃~70℃
Range of Work Pressure Standard Atmospheric Pressure±10%
Humidity 10%-90%(non condensing)
Service Life 10 Years (normal use)
Warranty Period 12 Months
Weight 3g
Typical Applications
Residential and Commercial Fire Rlarms
Carbon Monoxide Detector
Fire Safety
