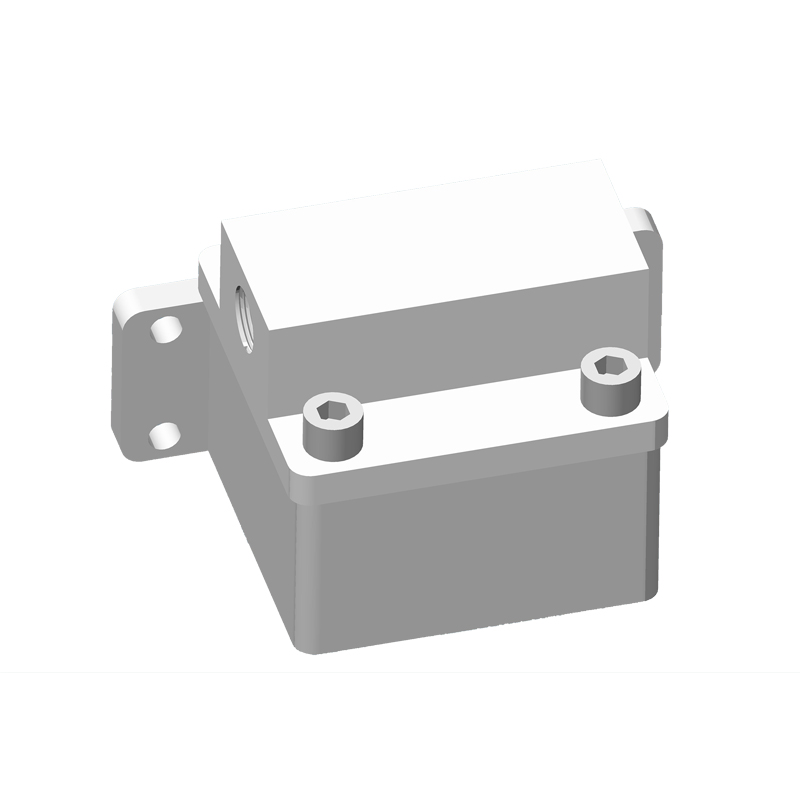

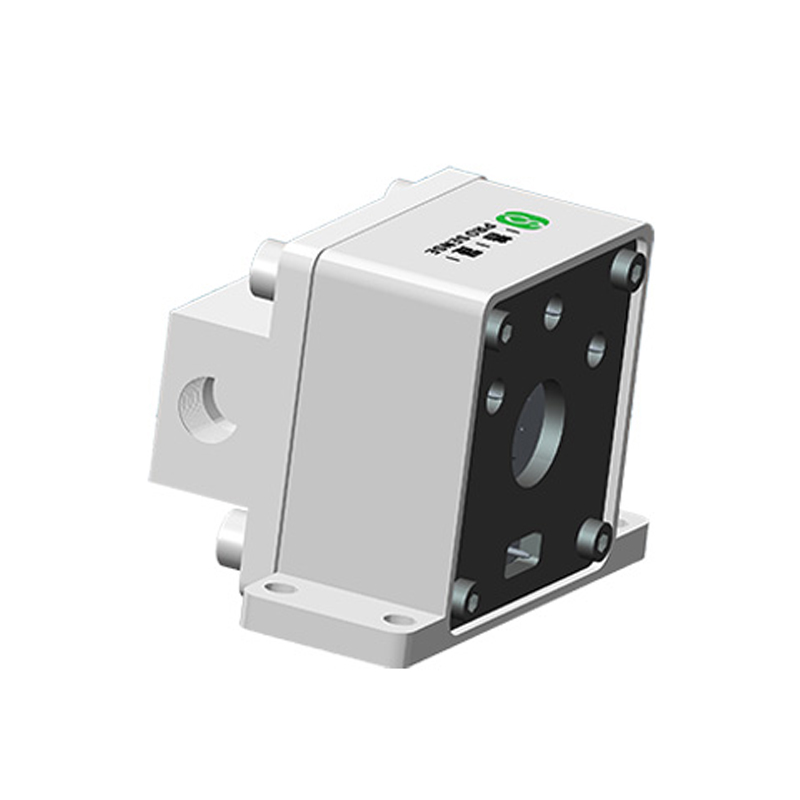

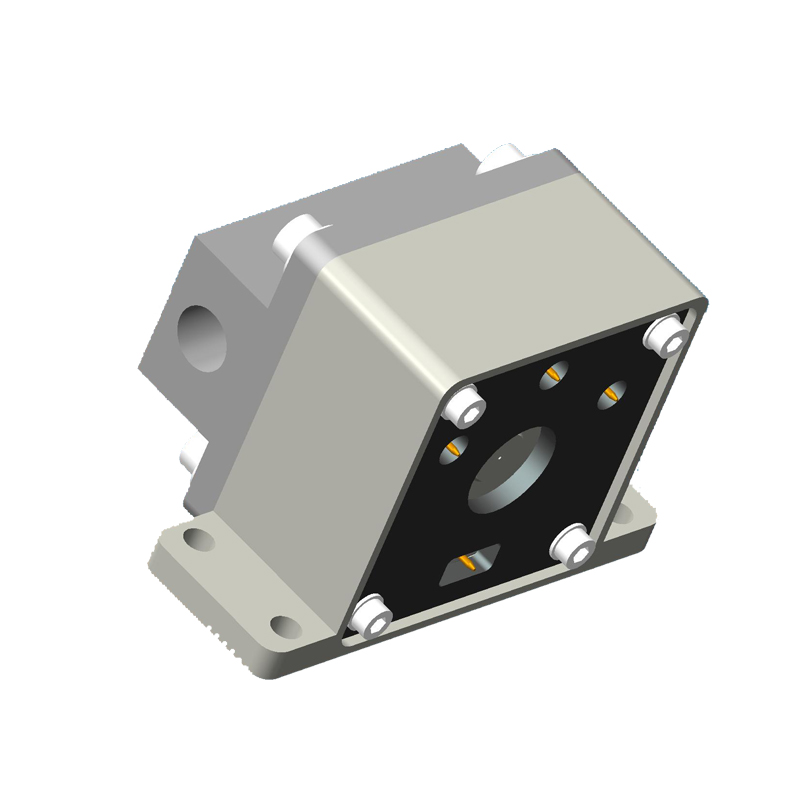

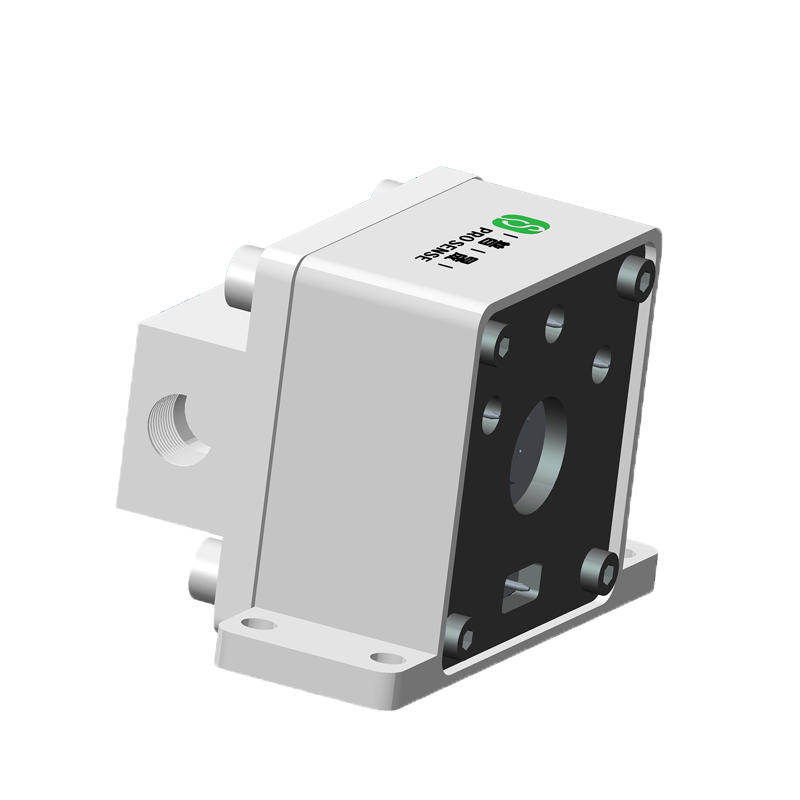

FC8001+

Fuel cell type hydrogen detection module

The FC8001+ fuel cell hydrogen detection module integrates numerous patented and non patented core technologies, combined with a specially designed gas chamber, specifically designed for detecting hydrogen with optical instruments such as photoacoustic spectroscopy. It can be widely used in places such as power, petrochemical, metallurgical, nuclear power, etc. that require real-time and continuous monitoring of hydrogen concentration in target environments.

Specification Download Leave a message

Features

High-Precision

Anti-Interference

Anti-Poisoning

Wide Temperature Range

Long Service life

Excellent Repeatability and Stability

Technical Indicators

Specification Download

Detection Principle	Micro fuel cell
Range（ppm）	0-40000
Maximum Overdrive （ppm）	60000
Sensitivity(nA/ppm)	0.4±0.2(25±3℃)
Response time	＜ 5 Minute
Check The Accuracy（25±3℃）	±3%F.S.
Repeatability	5%
Output linearity	linear
Working Temperature Range	-40℃～60℃
Working Pressure Range	Standard Atmospheric Pressure±10％
Operating Humidity Range	10％－90％（Non-Condensing）
Service life	10 Year（Normal Use）
Warranty Period	12 A Month
Weight	30g
Organic Silicon Poisoning	Deny

Typical Applications

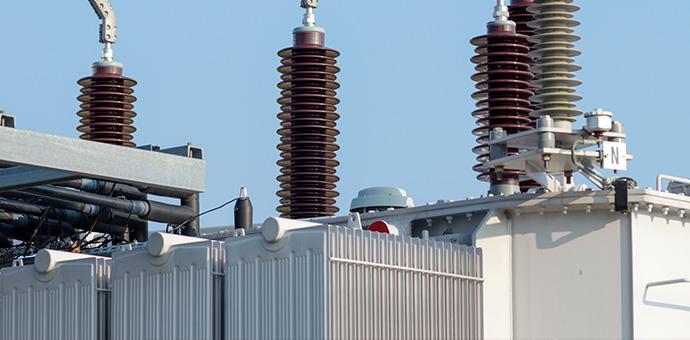

Power Transformer

Reactor

Bushing
