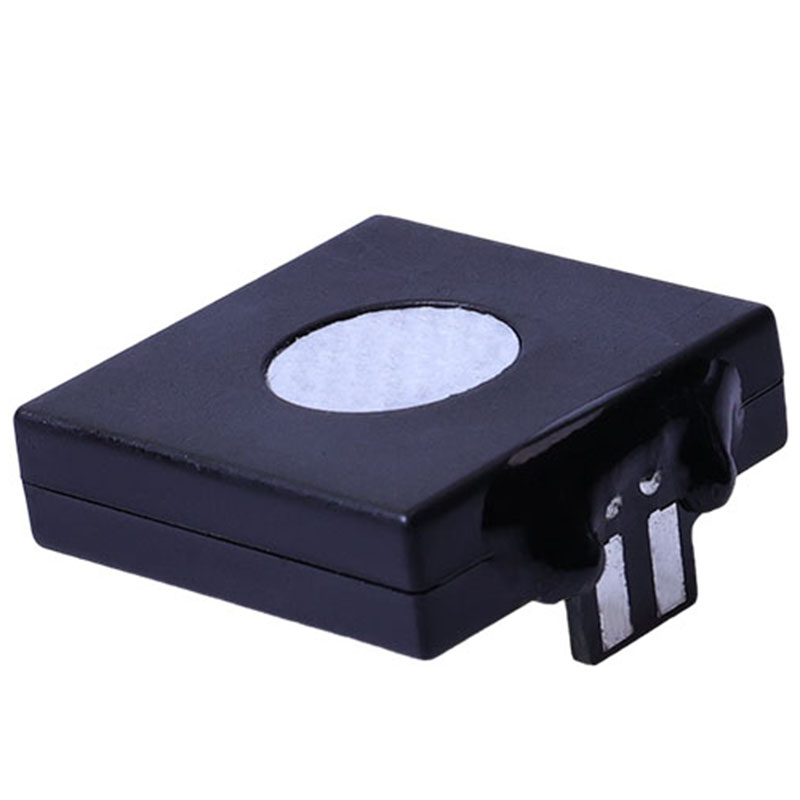

FC-DJY-100

Electrochemical Electrolyte Sensors

The electrolyte sensor with the model of FC-DJY-100 from ProSense works on the proven fuel cell technology and responds directly to the volume concentration of electrolyte. FC-DJY-100 realizes the detection of electrolyte by the reaction occurred on the working electrode of the micro fuel cell, during which the current generated is proportional to the concentration of electrolyte. FC-DJY-100 has the typical advantages of high stability and long service life.

Specification Download Leave a message

Features

0 Power Consumption

High Precision

High Sensitivity

High Cost Effectiveness

Drift Can Be Ignored

Anti Poisoning

Excellent Repeatability and Stability

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Range	0-100ppm
Maximum Overload	500ppm
Sensitivity	100±50(nA/ppm)(LiPF6）
Response Time	＜150 秒
Baseline Range（20℃）	±5ppm
Repeatability	2%
Linearity	Linear
Temperature Range	-40℃～60℃
Range of Work Pressure	Standard Atmospheric Pressure ±10％
Humidity Range	10％－90％（Non condensing）
Service Life	3 Years (normal use)
Warranty Period	12 Months
Weight	3g

Typical Applications

Lithium Battery Storage Station

Energy Storage Power Station

Lithium Battery Production Lines

Electric Vehicle Charging Station

Electric Vehicle

Computer Room
