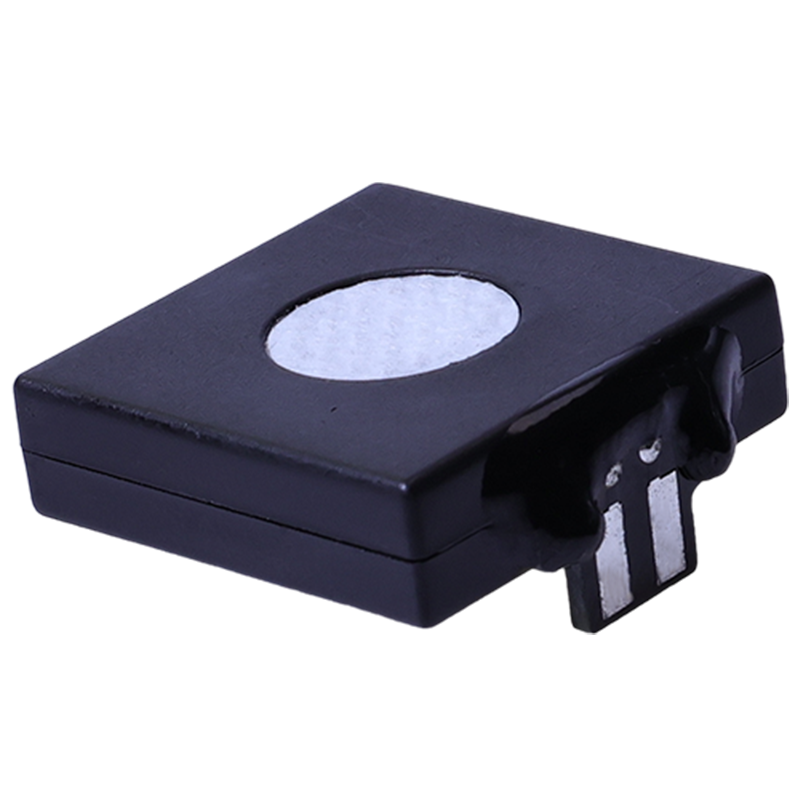

FC-VOC-100

Electrochemical Air Quality Sensor

The VOC sensor with the model of FC-VOC-100 from ProSense works on the proven fuel cell technology and responds directly to the volume concentration of VOC. FC-VOC-100 realizes the detection of VOC by the reaction occurred on the working electrode of the micro fuel cell, during which the current generated is proportional to the concentration of VOC. FC-VOC-100 has the typical advantages of high stability, good consistency, anti-poisioning and no need for zero compensation.

Specification Download Leave a message

Features

0 Power Consumption

High Precision

High Sensitivity

High Cost Effectiveness

Drift Can Be Ignored

Anti Poisoning

Excellent Repeatability and Stability

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Range	0-100ppm
Maximum Overload	500ppm
Sensitivity	50±20(nA/ppm)（alcohol）
Response Time	＜90 秒
Baseline Range（20℃）	±3ppm
Repeatability	2%
Linearity	Linear
Temperature Range	-20℃～60℃
Range of Work Pressure	Standard Atmospheric Pressure ±10％
Humidity	15％－90％（Non condensing）
Service Life	5 Years (normal use)
Warranty Period	12 个月
Months	3g

Typical Applications

Industrial Safety Environment

Sanitation Station

Environmental Protection Field
