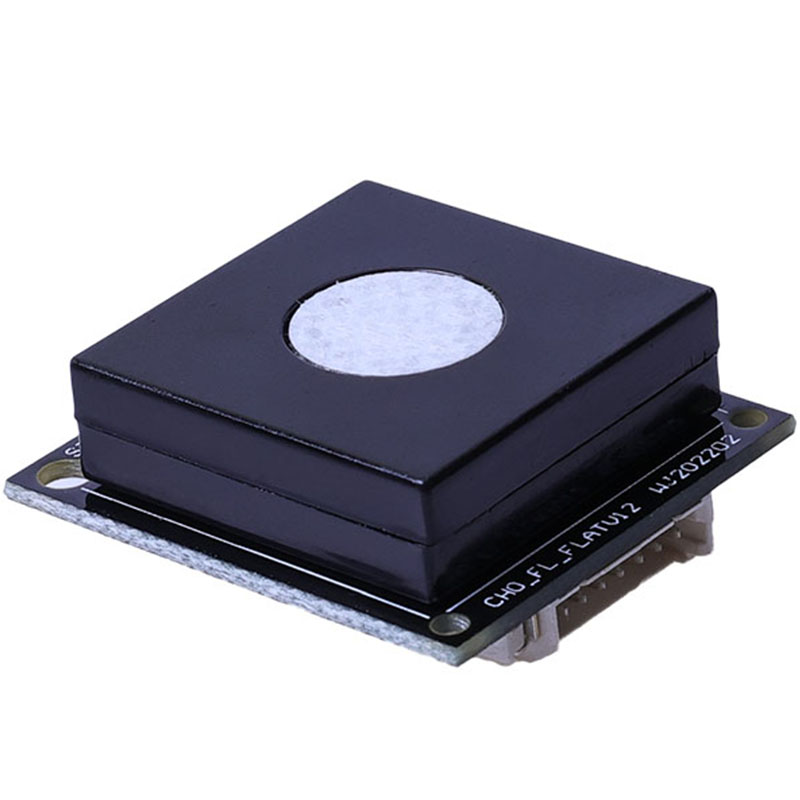

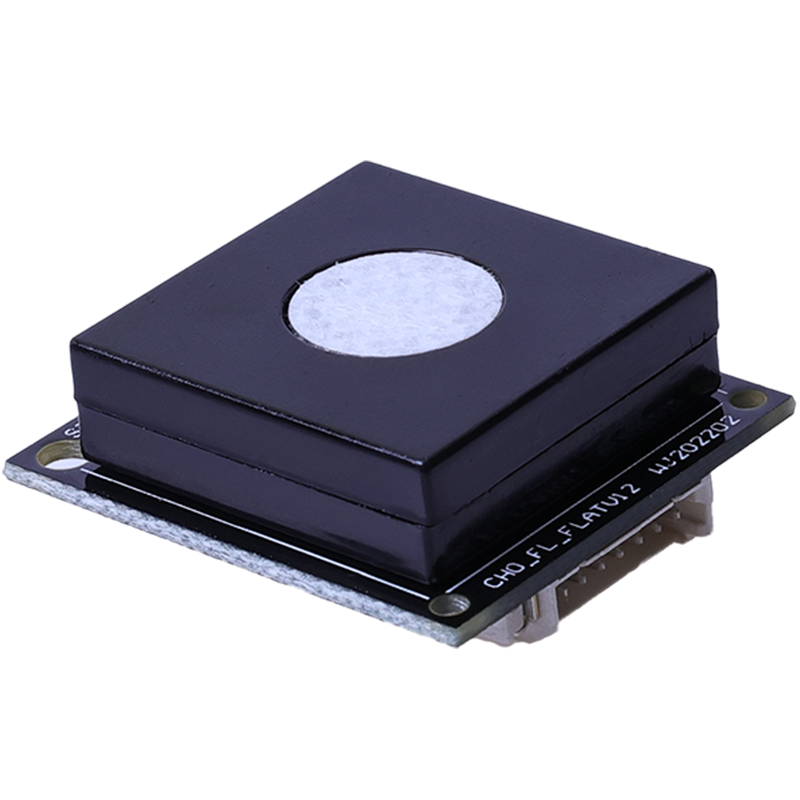

PS-VOC-E

Air Quality Module

PS-VOC-E air quality module, works on the proven fuel cell technology, combines solid electrolyte with noble metal catalyst, converting VOC content into PPM directly. Once VOC arrives at working electrode (anode) it is oxidized instantaneously to generate an electrical signal. The electrical signal is then acquired and processed by microprocessor into a PPM value and is output by standard digital signal. PS-VOC-E is pre-calibrated in the factory and can be integrated into your system directly

Specification Download Leave a message

Features

High Stability

Good Consistency

Long Service Life

No Need For Dynamic Zero Correction

Drift Small

Strong Ability to Resist Poisoning

No Need for Regular Calibration

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Detectable Gas	Indoor air quality
Detection Range	0-5ppm
Maximum Overload	10ppm
Input Voltage	4.5-7V
Warm up Time	<3min
Response Time（T₉₀）	<90S
Recovery Time (T₁₀ )	<120S
Resolution	0.001ppm
Temperature Range	-40℃～70℃
Humidity Range	10％－90％RH（Non condensing）
Calibration Gas	Alcohol
Service Life	5 Years (normal use)
Warranty Period	12 Months
Weight	4g

Typical Applications

Smart Home

Portable Instrument

Wearable Devices

Air Purifier

Fresh air System

Fresh Air Conditioning
