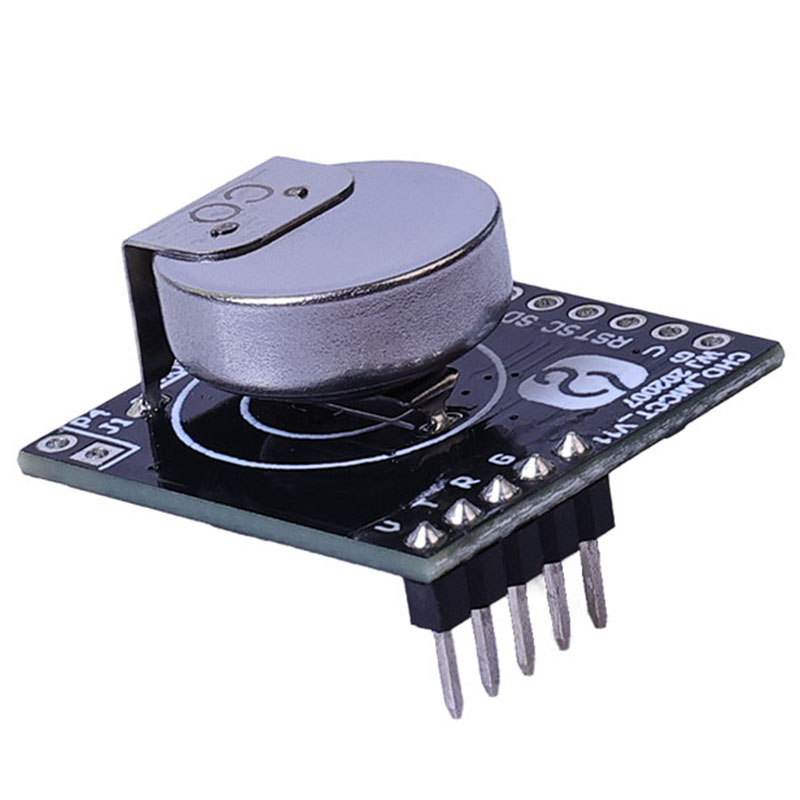

PS-CO-100
Long life CO Module
PS-CO-100 carbon monoxide module, works on the proven fuel cell technology, combines fuel cell technology with precise electronic technique, converting the carbon monoxide content into PPM directly. Once carbon monoxide arrives at working electrode (anode) it is oxidized instantaneously to generate an electrical signal which is proportional to the carbon monoxide concentration. The electrical signal is then acquired and processed by microprocessor into a PPM value and is output by standard digital signal. PS-CO-100 is pre-calibrated in the factory and can be integrated into your system directly.
Features
0 Power Consumption
High Measurement Aaccuracy
Long Service Life
Selective Detection
Fast Response Speed
Anti Poisoning
Wide Temperature Range
Technical Indicators
Detection Principle Micro Fuel Cell
Detectable Gas CO
Detection Range 0-100ppm
Maximum Overload 200ppm
Input Voltage 4.5-6V
Response Time(T90) <60S
Check the Accuracy ±3ppm OR(25±3℃)
Detection Limit 3ppm
Repeatability 3%
Linearity Linear
Temperature Range -40℃~70℃
Range of Work Pressure Standard Atmospheric Pressure ±10%
Humidity Range 10%-90%RH(Non condensing)
Service Life 10 Years (normal use)
Warranty Period 12 Months
Weight 4g
Organic Silicon Poisoning No
Typical Applications
Smart Home
Portable Instrument
Wearable Devices
Air Cleaner
Fresh Air System
