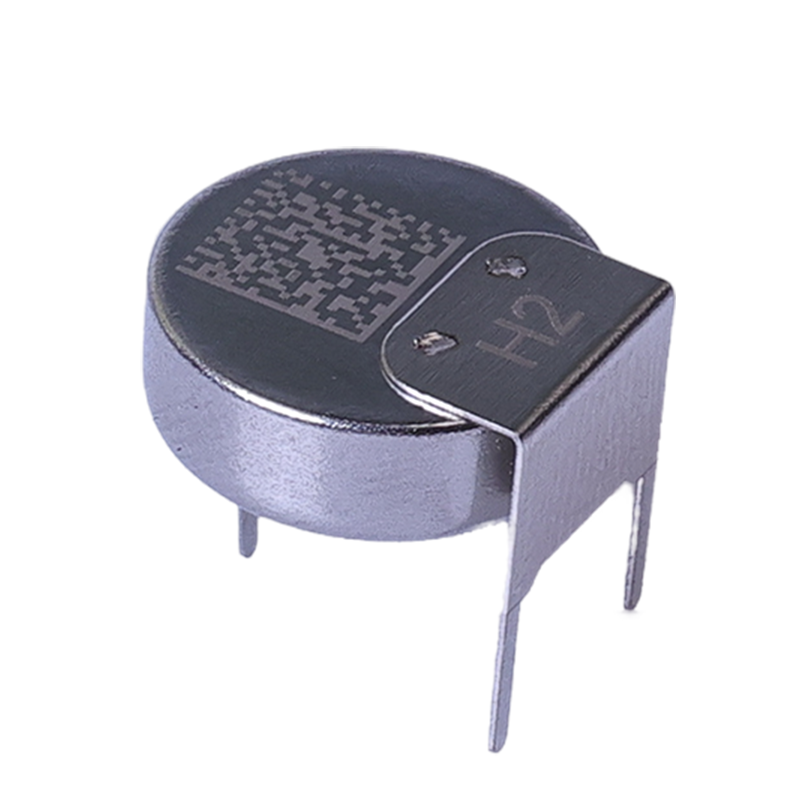

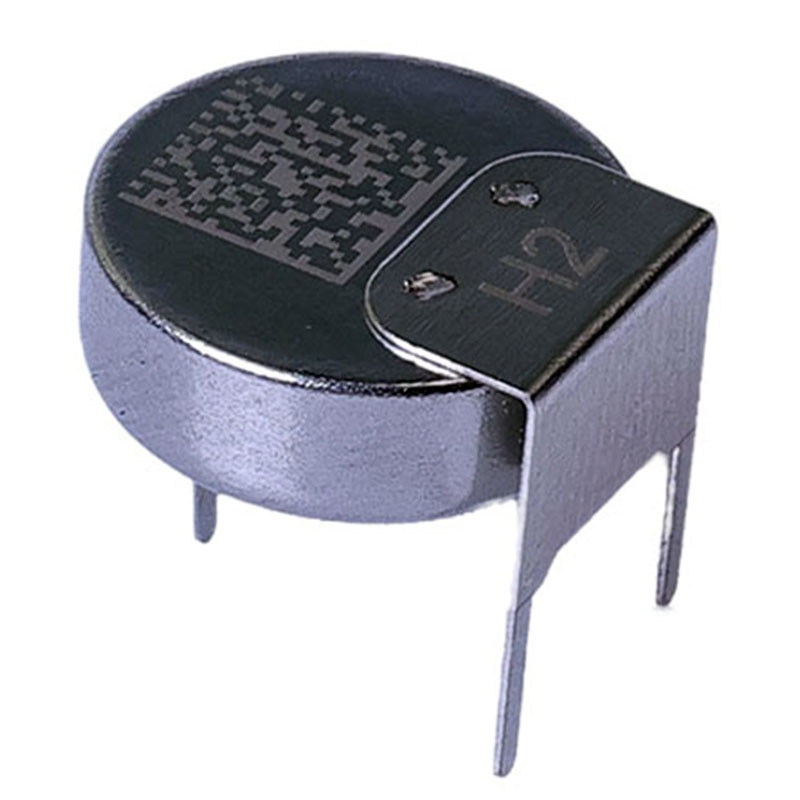

FC-H2-100

Long life hydrogen sensor

FC-H2-100 H2 sensor from ProSense works on the proven fuel cell technology and responds directly to the volume concentration of H2. FC-H2-100 realizes the detection of H2 by the reaction occurred on the working electrode of the micro fuel cell, during which the current generated is proportional to the concentration of H2. FC-H2-100 is perfect for application powered by battery because fuel cell realizes gas detection without power consumption.

Specification Download Leave a message

Features

0 Power Consumption

Rapid Response

High Precision

Selective Detection

Anti Poisoning

Wide Temperature Range

Ten Years Service Life

Excellent Repeatability and Stability

Technical Indicators

Operation Manual

Principle	Micro Fuel Cell
Range (ppm)	0-100
Maximum Overload（ppm）	200
Sensitivity(nA/ppm)	5±1.5
Response Time	＜90 秒
Check the Accuracy（25±3℃）	±3%F.S.
Repeatability	3%
Output Linearity	Linear
Working Temperature Range	-40℃～70℃
Range of Work Pressure	Standard Atmospheric Pressure±10％
Working Humidity Range	10％－90％ (non condensing)
Service Life	10 Years (normal use)
Warranty Period	12 Months
Weight	3g
Organic Silicon Poisoning	no
