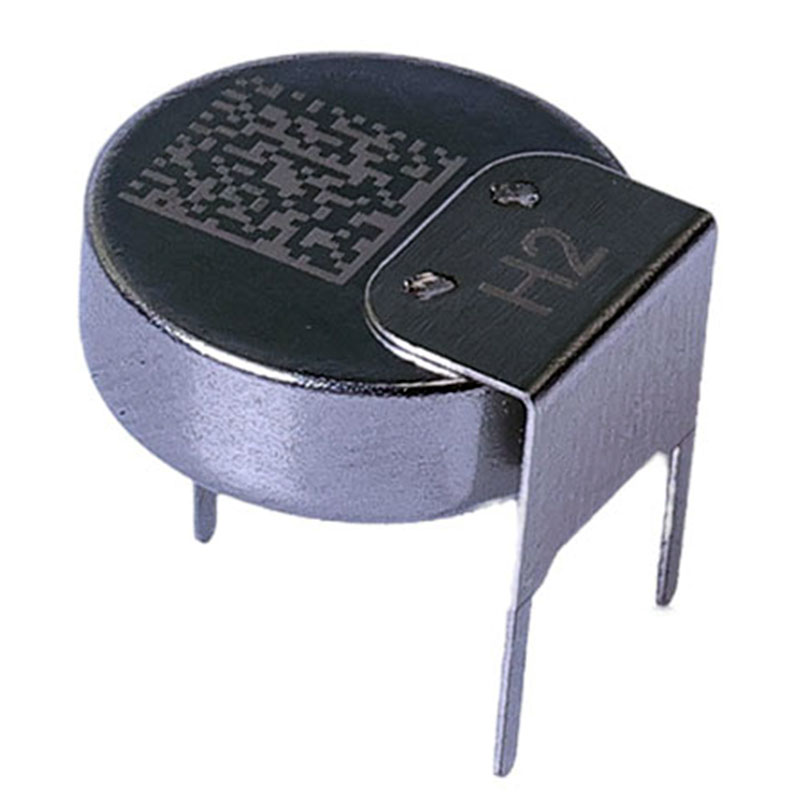

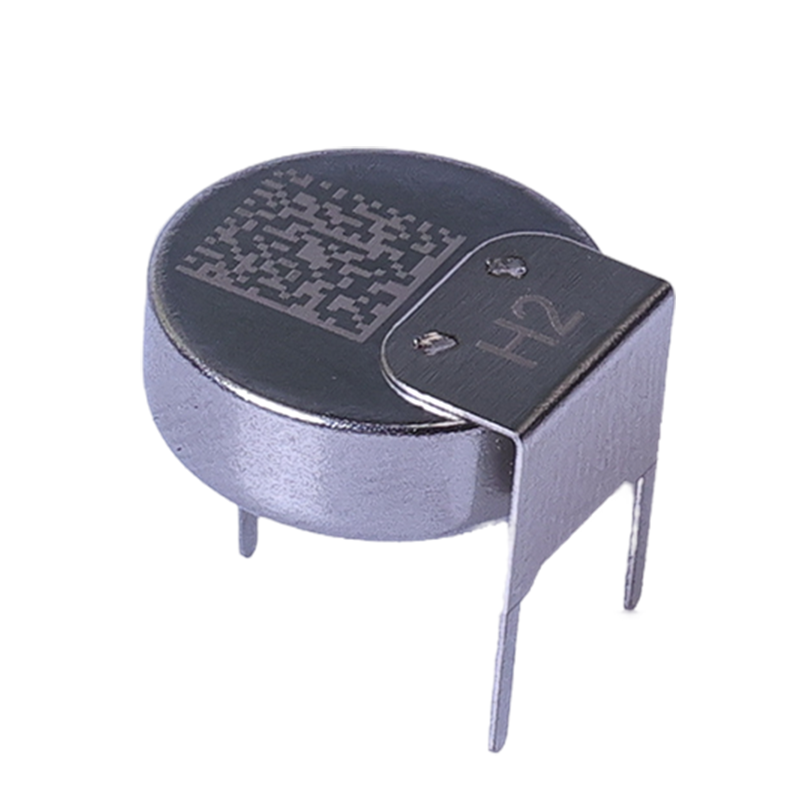

FC-H2-5000

Long Service Life Hydrogen Sensors

FC-H2-5000 H2 sensor with long service life works on the proven fuel cell technology. Once H2 arrives at the working electrode(anode) it is oxidized instantaneously to generate an electrical signal which is proportional to the H2 concentration. By calibrating the sensor with a known concentration of H2, the output current of the sensor can be used to quantitatively determine H2 concentration. FC-H2-5000 is famous for its long service life, high anti-interference ability and the sensor has a compact size which is the ideal choice for size oriented applications such as portable H2 detectors, small residential H2 detectors, and multi-sensor fire detectors. The calibration information is stored in barcode printed on the sensor, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking. Since there is no consumption components in the sensor, FC-H2-5000 possesses excellent long service life and ensures maintenance-free operation.

Specification Download Leave a message

Features

0 Power Consumption

Rapid Response

High Precision

Selective Detection

Anti Poisoning

Wide Temperature Range

Ten Year Service Life

Excellent Repeatability and Stability

Technical Indicators

Operation Manual

Principle	Micro Fuel Cell
Range（ppm）	0-5000
Maximum Overload（ppm）	10000
Sensitivity (nA/ppm)	0.4±0.2
Response Time	＜60 秒
Check The Accuracy（25±3℃）	±3%F.S.
Repeatability	3%
Output Linearity	Linear
Working Temperature Range	-40℃～70℃
Range of Work Pressure	Standard Atmospheric Pressure±10％
Working Humidity Range	10％－90％(non condensing)
Service Life	10 Years (normal use)
Warranty Period	12 Months
Weight	3g
Organic Silicon Poisoning	no

Typical Applications

Lithium Battery Safety Monitoring

Industrial Safety Environment

Fire Safety
