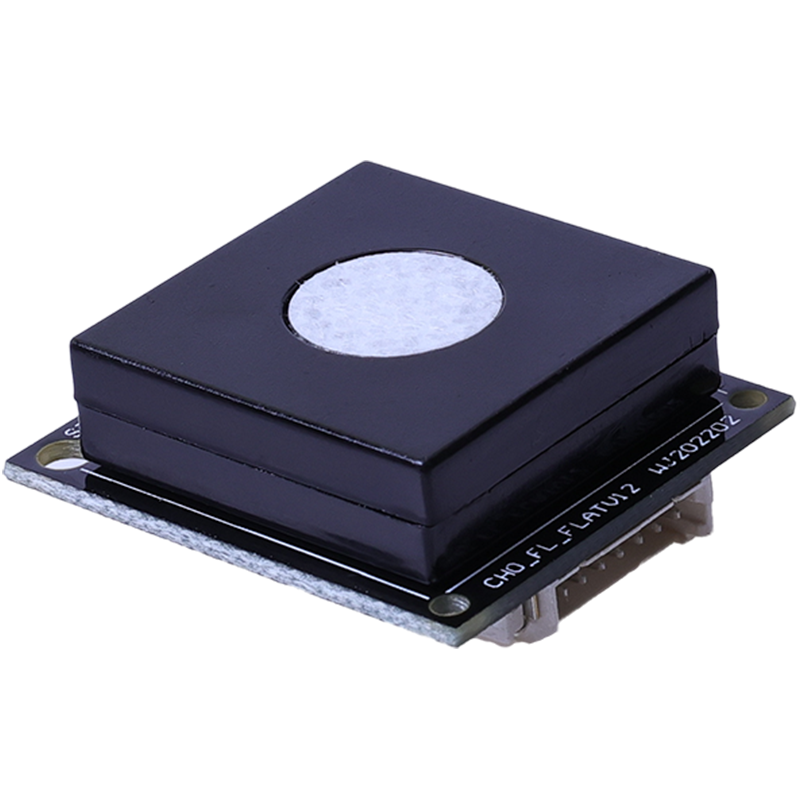

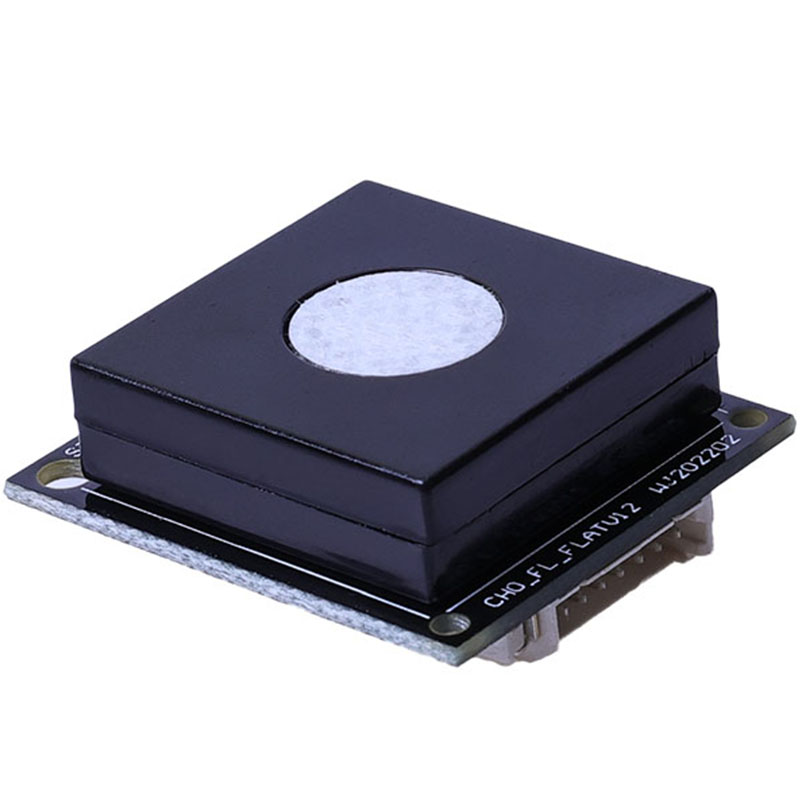

PS-DJY-100

Electrochemical Electrolyte Module

PS-DJY-100 Electrolyte module, works on the proven fuel cell technology, combines fuel cell technology with precise electronic technique, converting the electrolyte content into PPM directly. Once electrolyte arrives at working electrode (anode) it is oxidized instantaneously to generate an electrical signal. The electrical signal is then acquired and processed by microprocessor into a PPM value and is output by standard digital signal. PS-DJY-100 is pre-calibrated in the factory and can be integrated into your system directly.

Specification Download Leave a message

Features

High Stability

Good Consistency

Long Service Life

No Need for Dynamic Zero Correction

Drift Small

Strong Ability to Resist Poisoning

No Need for Regular Calibration

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Detection Range	0-100ppm
Maximum Overload	200ppm
Input Voltage	4.5-7V
Warm up Time	<3Min
Response Time（T90）	<180S
Recovery Time (T10 )	<240S
Resolution	1ppm
Temperature Range	-40℃～60℃
Humidity Range	10％－90％RH（Non Condensing）
Service Life	3 Years (Normal use)
Warranty Period	12 Months
Weight	4g

Typical Applications

Lithium Battery Production Lines

Electric Vehicle Charging Station

Lithium Battery Storage Station

Energy Storage Power Station

Computer Room

Electric Vehicle
