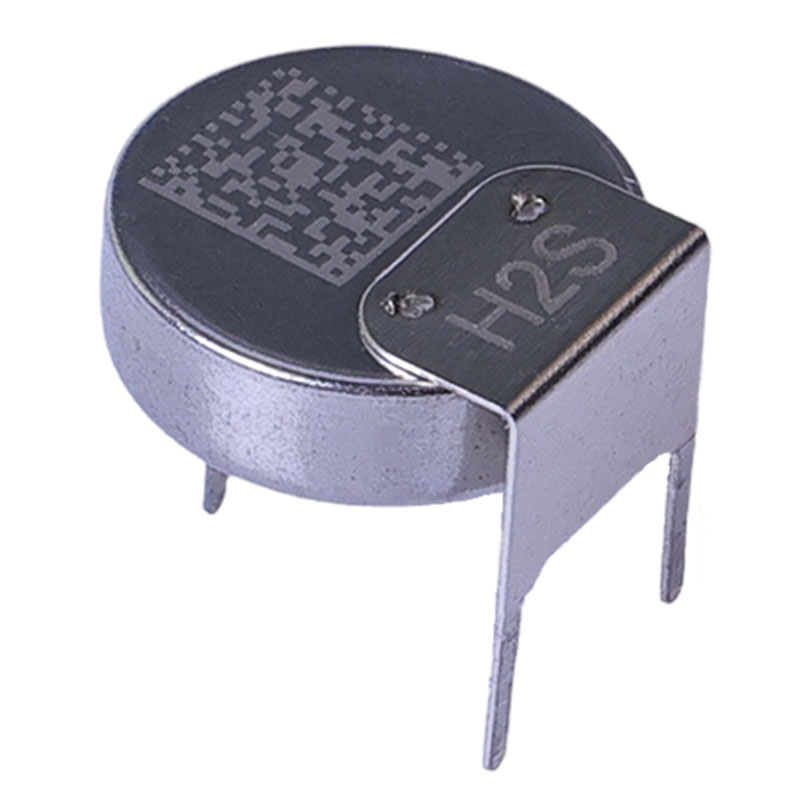

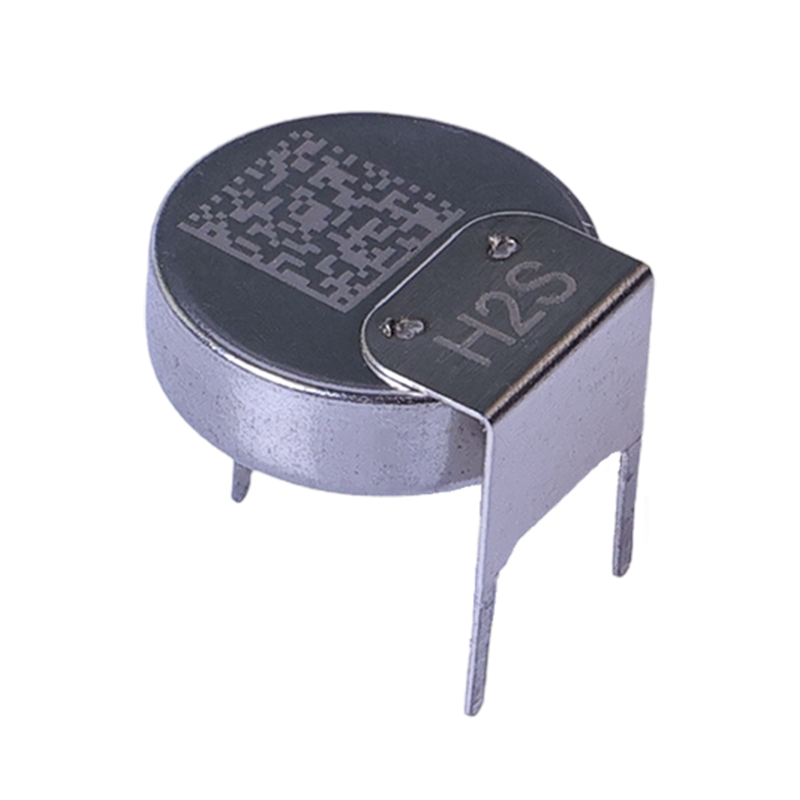

FC0-H2S-100

Long life hydrogen sulfide sensor

FC0-H2S-100 H2S Sensor from ProSense works on the proven fuel cell technology and responds directly to the volume concentration of H2S. FC0-H2S-100 realizes the detection of H2S by the reaction occurred on the working electrode of the micro fuel cell, during which the current generated is proportional to the concentration of H2S. FC0-H2S-100 is perfect for application powered by battery because fuel cell realizes gas detection without power consumption.

Specification Download Leave a message

Features

Selective Detection of Hydrogen Sulfide

High Measurement Accuracy

Fast Response Speed

Long Service Life

Stable and Reliable

Technical Indicators

Operation Manual

Principle	Micro Fuel Cell
Range	0-100ppm
Maximum Overload	200ppm
Sensitivity	50±20(nA/ppm)
Repeatability	3%
Response Time(T90)	＜30 秒
Linearity	Linear
Temperature Range	-40 ℃~85 ℃/105 ℃ (high temperature optional)
Range of Work Pressure	Standard Atmospheric Pressure±10％
Humidity	10％－90％（non condensing）
Service Life	15 Years (normal use)
Warranty Period	24 Months
Weight	3g

Typical Applications

Industrial Safety

Smart Pipelines

Smart City Environmental Protection

Smart Environmental Sanitation
