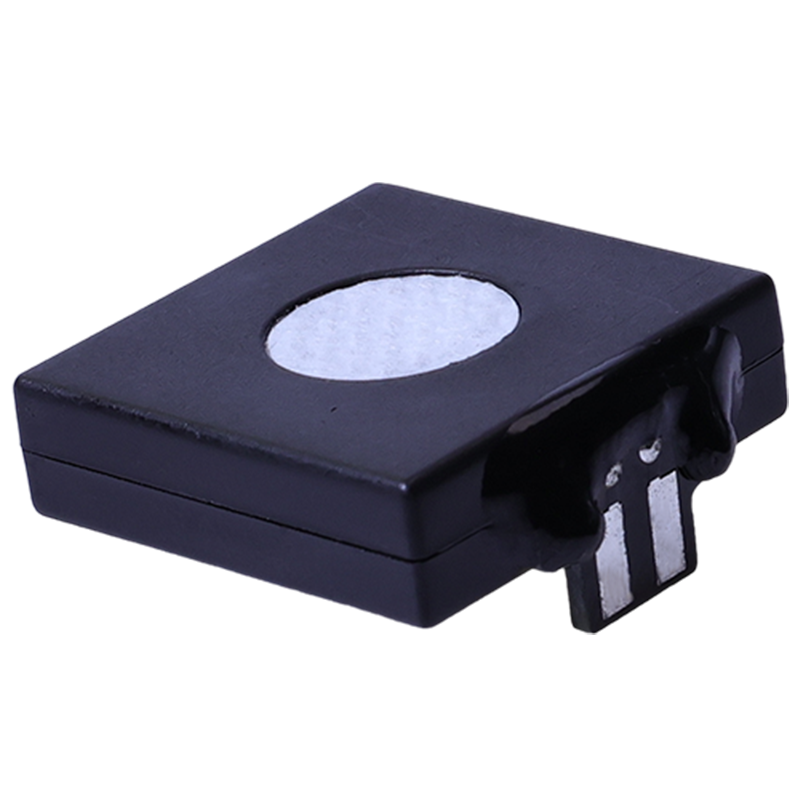

FC-H2S-2

Hydrogen Sulfide Sensors

The H2S sensor with the model of FC-H2S-2 from ProSense works on the proven fuel cell technology and responds directly to the volume concentration of H2S. FC-H2S-2 realizes the detection of H2S by the reaction occurred on the working electrode of the micro fuel cell, during which the current generated is proportional to the concentration of H2S. FC-H2S-2 has the typical advantages of high stability, high accuracy, good selectivity and long service life.

Specification Download Leave a message

Features

Selective Detection of hydrogen Sulfide

High Measurement Accuracy

Fast Response Speed

Long Service life

Stable and Reliable

Technical Indicators

Operation Manual

Principle	Micro Fuel Cell
Range	0-2ppm
Maximum Overload	5ppm
Sensitivity	100±50(nA/ppm)
Response Time(T90)	＜15 秒
Resolution（20℃）	0.001ppm
Repeatability	3%
Output Linearity	Linear
Working Temperature Range	-40℃～70℃
Range of Work Pressure	Standard Atmospheric Pressure±10％
Working Humidity Range	15％－90％
Service Life	5 Years
Warranty Period	12 Months
Weight	3g

Typical Applications

Smart Agriculture

Smart Environmental Sanitation

Smart Farming

Smart City Environmental Protection

Odor Monitoring

Smart Toilet
