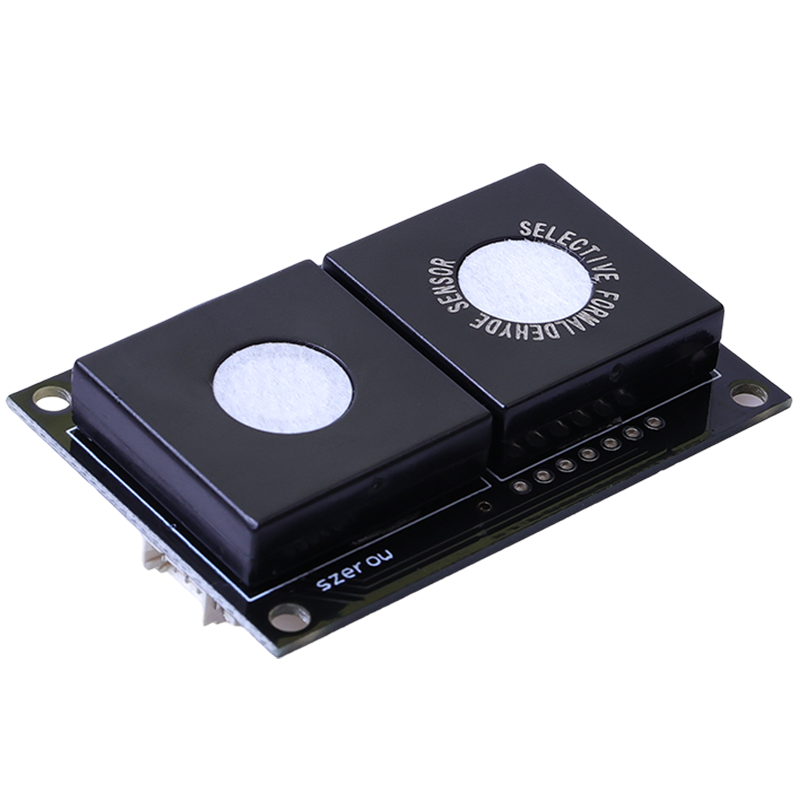

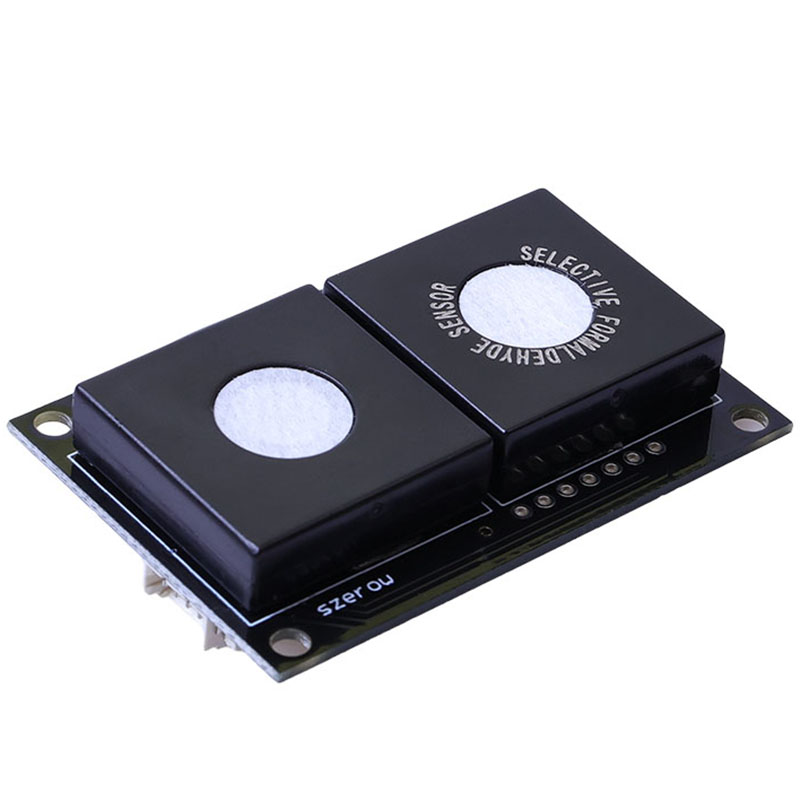

DS-RF

Selective Formaldehyde Module

DS-RF selective formaldehyde module can detect HCHO, VOC, TVOC, t & RH at the same time. The module combines selective HCHO sensor with advanced electronic control technology, converting HCHO concentration into PPM directly. The module realizes the detection of VOC and TVOC based on fuel cell technology. DS-RF selective HCHO module is free from the influence of the interference gases, such as C2H5OH, C6H6, NH3, CO, etc. DS-RF selective HCHO module is pre-calibrated in the factory and can be integrated into your system directly.

Specification Download Leave a message

Features

Simultaneously Achieve detection of HCHO, VOC, TVOC, temperature, and Humidity

Can Achieve Selective detection of Formaldehyde

Electrochemical Principle for Detecting VOC and TVOC

Fast Response Speed

Long Service Life

Stable and Reliable

Low Power Consumption

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Detectable Gas	HCHO
Detection Range	0-1ppm
Maximum Overload	5ppm
Resolution	0.001ppm
Check the Accuracy	±30ppb or ±10% Whichever is Greater
Input Voltage	4.5-7V
Response Time（T₉₀）	<120S
Temperature Range	-40℃～60℃
Humidity Range	10％－90％RH（Non condensing）
Service Life	6 Years (Normal use)
Warranty Period	12 Months
Weight	10g

Typical Applications

Fresh Air System

Air Purifiers

Air Conditioning

Portable Instrument

Wearable Devices

Smart Home
