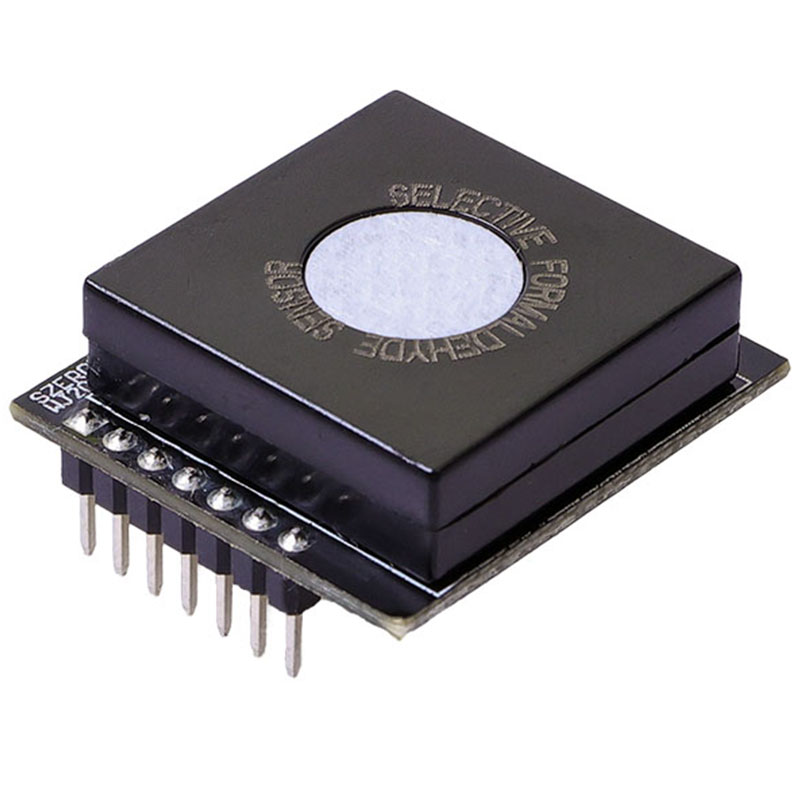

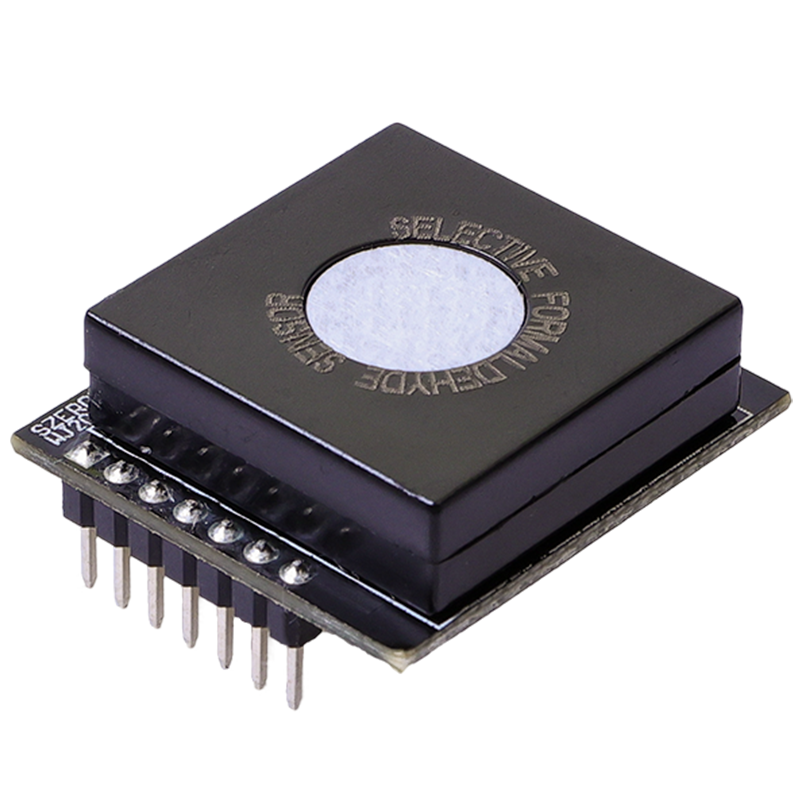

WZ-H3-NK

Selective High Temperature Resistant Formaldehyde Module

WZ-H3-NK selective & high temperature resistant formaldehyde module is the one launched specially for application in cases where temperature is higher than 60℃. WZ-H3-NK HCHO module is the first application of solid electrolyte integrated in fuel cell vehicles to HCHO detection ----real solid electrolyte, free from electrolyte leakage or dry out; WZ-H3-NK selective HCHO module is free from the influence of the interference gases at low concentration, such as C2H5OH and can generate accurate detection result. WZ-H3-NK selective HCHO module is pre-calibrated in the factory and can be integrated into your system directly.

Specification Download Leave a message

Features

Selective HCHO Detection

High Temperature Resistance

High Measurement Accuracy

Fast Response Speed

6 Year Service Life

Stable and Reliable

Low Power Consumption

Technical Indicators

Operation Manual

Detection Principle	Micro Fuel Cell
Detectable Gas	HCHO
Detection Range	0-1ppm
Maximum Overload	5ppm
Input Voltage	3.3-5V
Response Time（T₉₀）	<90S
Resolution	0.001ppm
Check the Accuracy	±30ppb or ±10% Whichever is Greater（25±3℃）（50±5%RH）
Temperature Range	-40℃～70℃
Humidity Range	10％－90％RH（Non condensing）
Storage Temperature	-40℃～70℃
Service Life	6 Years (normal use)
Warranty Period	12 Months
Weight	4g

Typical Applications

In Car Formaldehyde Monitoring

Air Conditioning

Fresh Air System

Air Purifiers

Wearable Devices

Smart Home
