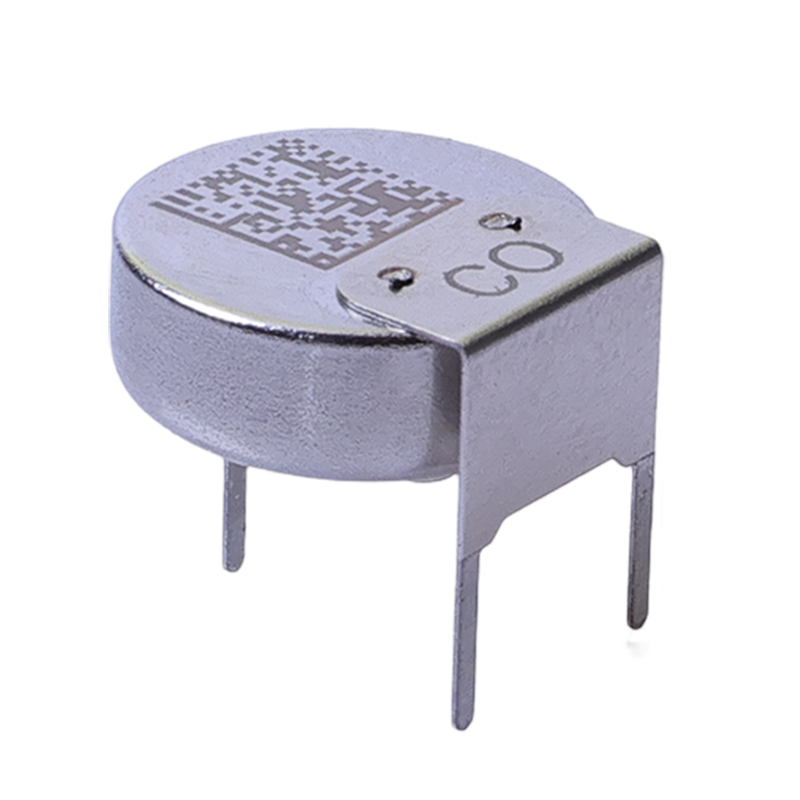

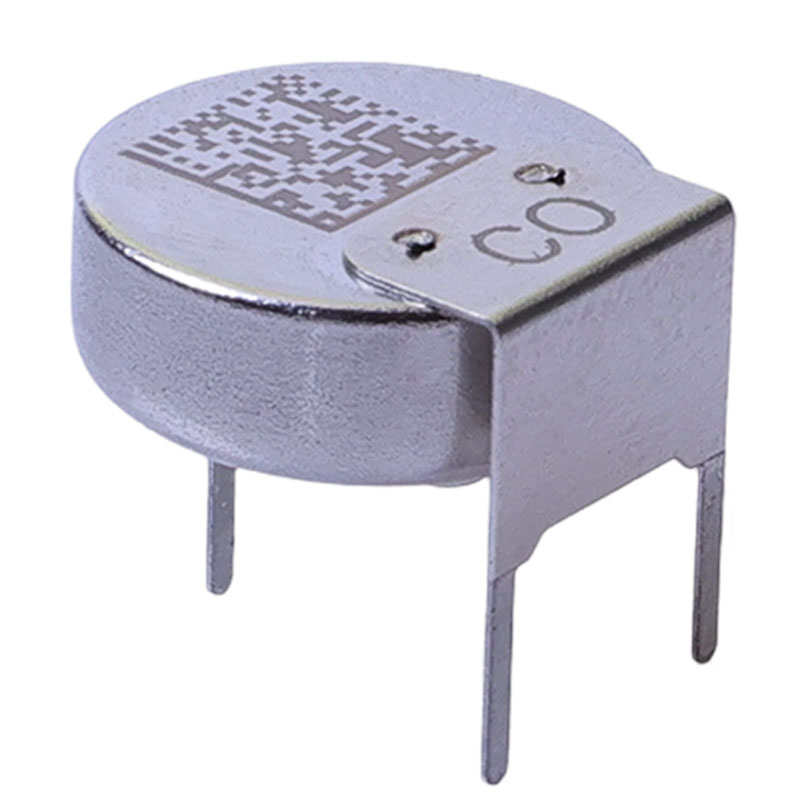

FC-CO-1000M

Long Service Life Carbon Monoxide Sensors

FC-CO-1000 CO sensor with long service life works on the proven fuel cell technology. Once CO arrives at the working electrode(anode) it is oxidized instantaneously to generate an electrical signal which is proportional to the CO concentration. By calibrating the sensor with a known concentration of CO, the output current of the sensor can be used to quantitatively determine CO concentration. FC-CO-1000 is famous for its long service life, high anti-interference ability and the sensor has a compact size which is the ideal choice for size oriented applications such as portable CO detectors, small residential CO detectors, and multi-sensor fire detectors. The calibration information is stored in barcode printed on the sensor, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking. Since there is no consumption components in the sensor, FC-CO-1000 possesses excellent long service life and ensures maintenance-free operation.

Specification Download Leave a message

Features

0 Power Consumption

Fast Response

High Precision

Selective Detection

Anti Poisoning

Wide Temperature Range

Ten Year Service Life

Excellent Repeatability and Stability

Technical Indicators

Operation Manual

Principle	Micro Fuel Cell
Range	0-1000ppm
Maximum Overload	5000ppm
Sensitivity	2±0.5(nA/ppm)
Response Time	＜60 秒
Check The Accuracy（25±3℃）	±3%FS
Repeatability	3%
Linearity	Linear
Temperature Range	-20℃～60℃
Range of Work Pressure	Standard Atmospheric Pressure±10％
Humidity	10％－90％(non condensing)
Service Life	10 Years (normal use)
Warranty Period	12 Months
Weight	3g
Reading in 1000ppm Alcohol	＜10ppm

Typical Applications

Residential and Commercial Fire Rlarms

Carbon Monoxide Detector

Fire Safety
